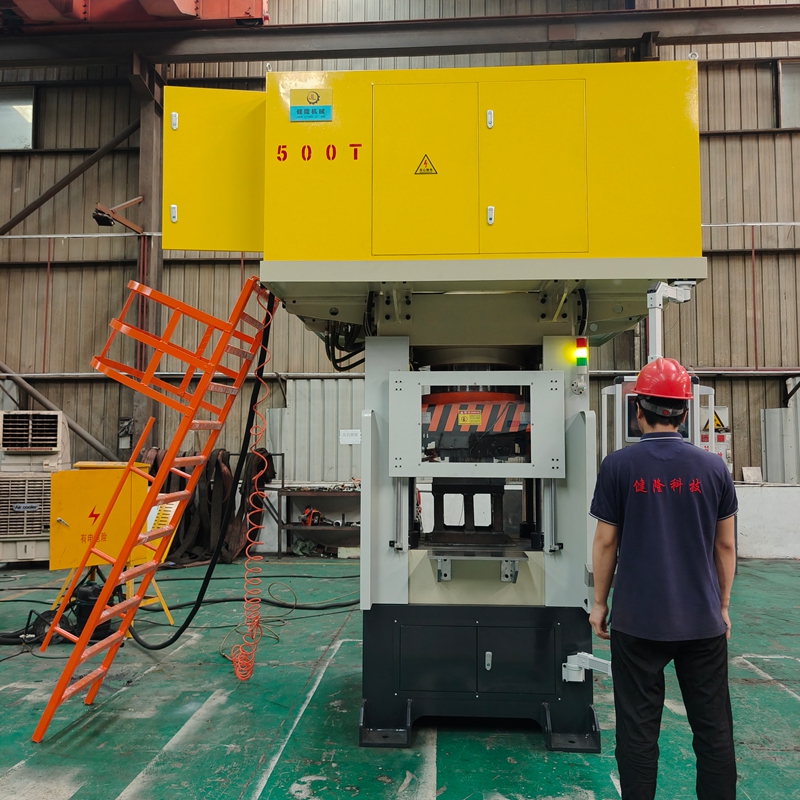

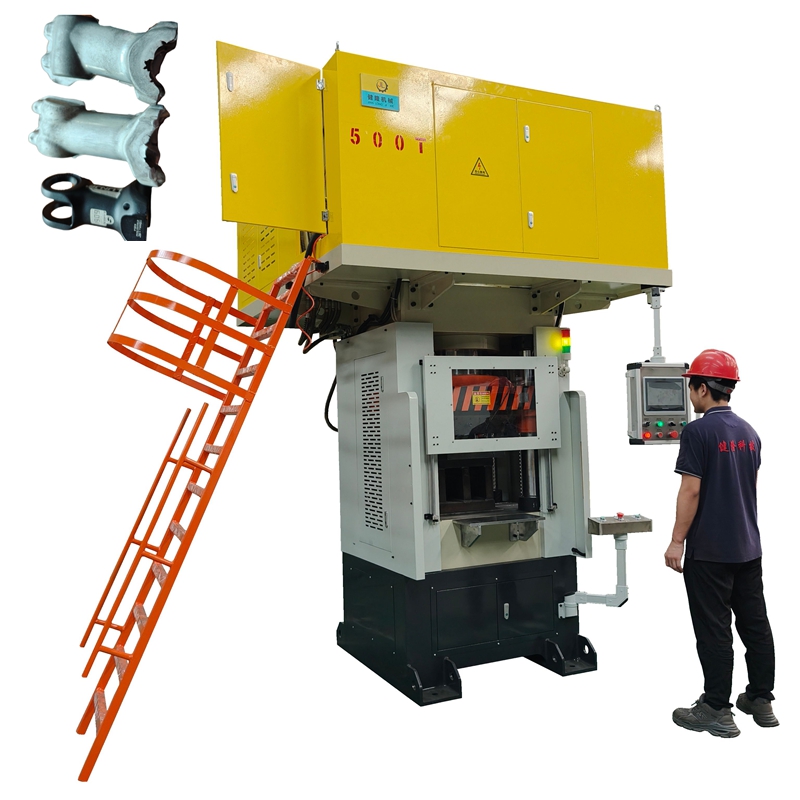

Core Processes and Key Technological Features of Bicycle Stem Forming Hydraulic Presses

Bicycle stem forming hydraulic presses are key equipment in the manufacturing of high-end bicycle components, but their technical approach and specific requirements differ significantly from those of multi-directional forging machines used for seatposts/hubs. Stem forming focuses more on high-precision, high-efficiency forging and forming, especially suitable for metal materials such as aluminum alloys, titanium alloys, or steel. In recent years, it has also been developing towards the forming of carbon fiber composite materials. Today, Jianlong Hydraulic Technology will share its core processes and key technological features for your reference!

1. Core Processes and Requirements

The stem is a critical safety component connecting the handlebars and the fork, bearing enormous torsional, bending, and impact loads. Its manufacturing requirements are:

1.1 Extremely high strength and reliability: Absolutely no breakage.

1.2 Lightweight: Minimize weight as much as possible while ensuring strength.

1.3 Complex structure: Contains internal cavities, irregular cross-sections, screw holes, clamping mechanisms, etc.

1.4 Fine surface finish: High-end stems require a smooth surface after forging to reduce machining.

Traditional casting or simple machining cannot simultaneously meet these requirements, thus precision forging has become the mainstream, leading to the development of specialized forming hydraulic presses.

2. Key Technical Features

2.1 High Rigidity Frame: Withstands asymmetrical forging forces, ensuring long-term accuracy.

2.2 Precision Guiding: Employs a four-column or frame structure, equipped with high-precision guide sleeves/posts, ensuring the accuracy of upper and lower die closing.

2.3 Servo Hydraulic Control System: Enables precise programmable control of forging speed, pressure, and position. For multi-directional forging, multi-axis linkage control is required.

2.4 Quick-Change Die System: Improves production efficiency and adapts to the high-end market with diverse varieties and small batches.

2.5 Automation Integration: Can be integrated with robots, heating furnaces (for hot forging), spraying (graphite) systems, conveyor belts, etc., to achieve automated production lines.

2.6 Process Monitoring and Data Traceability: Monitors and records pressure-displacement curves, temperature, time, and other parameters for each forming process in real time, ensuring the quality traceability of each product.

Bicycle handlebar stem forming hydraulic presses encompass a variety of technological approaches. Their core objective is to manufacture high-strength, lightweight, and structurally integrated handlebar stem blanks through precise and controllable plastic deformation. For more information/advice on bicycle handlebar stem forming hydraulic presses or to purchase other high-quality hydraulic presses, please contact us (or scan the WhatsApp QR code below). Jianlong Hydraulic Technology will provide you with personalized and customized professional solutions, dedicated to serving you.
