C-type/Bow-type Bearing Press Machine

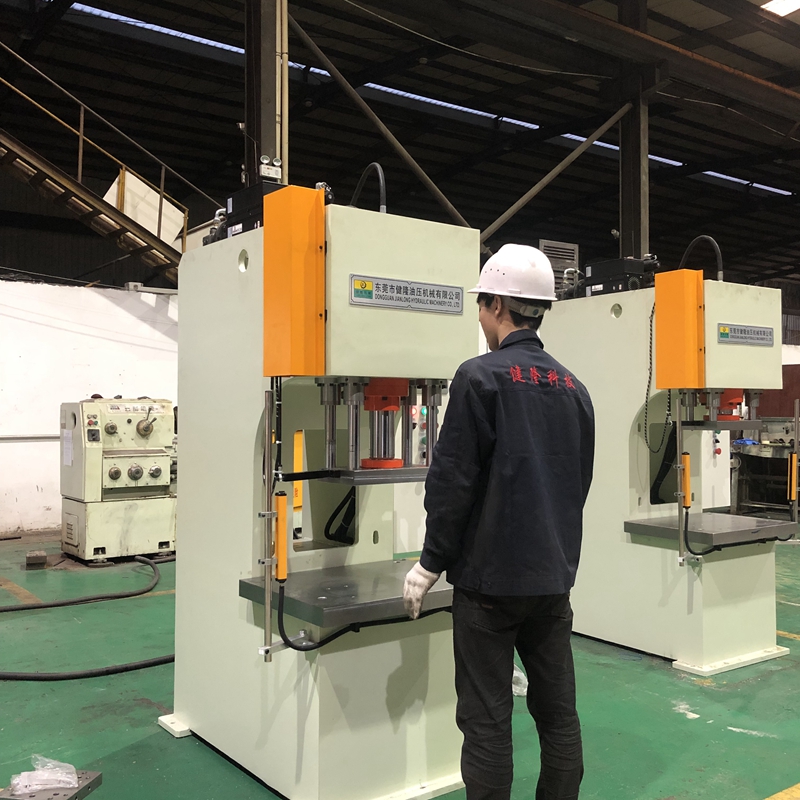

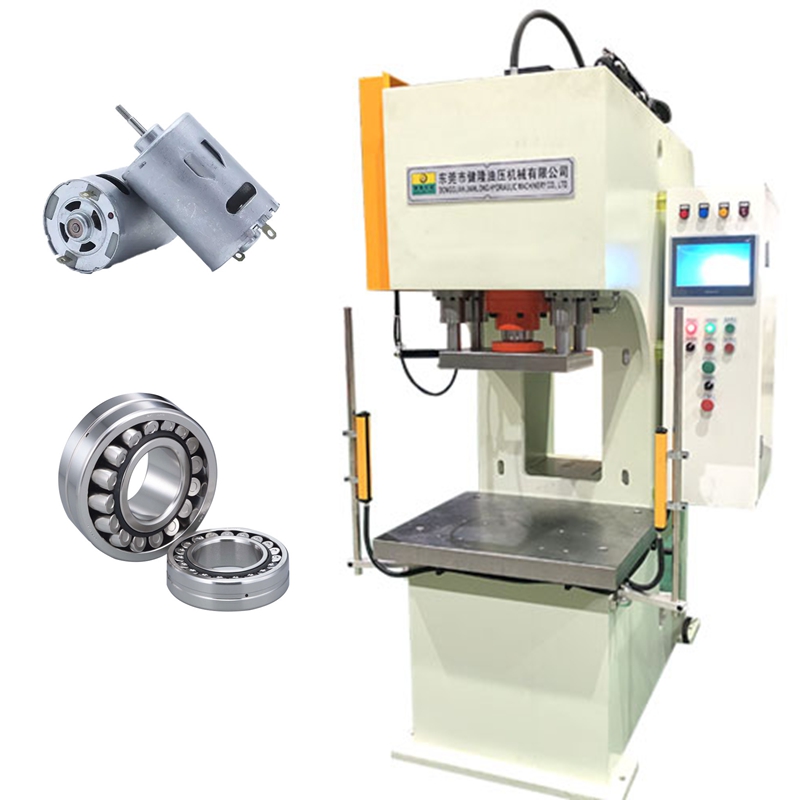

The bow-type/C-type bearing press machine is a compact, open-type press with an open operating space. Its body shape resembles the letter "C" or a bow, hence its name. It is ideal for pressing and disassembling interference-fit parts such as bearings, bushings, and gears. Below is a sharing from Jianlong Hydraulic Technology for your reference!

1. Core Structure: Open Body Design

• C-type Single-Arm Body: Constructed from high-quality steel plates by welding or integral casting, forming a three-sided open working space, facilitating operation, observation, and feeding from the side and front.

• Core Power: Typically hydraulically driven (cylinder located on the upper part of the machine body), but pneumatic-hydraulic booster or servo electric drive are also possible.

• Control Core: Integrated PLC and touch screen for precise control.

2. Typical Parameter Range

• Nominal Pressure: 1 ton to 100 tons (commonly 5T, 10T, 20T, 30T). • Throat depth (opening size): 100mm to 800mm, determining the depth to which the workpiece can be inserted.

• Working stroke: 50mm to 300mm.

• Control accuracy: Pressure accuracy up to ±0.5%, displacement accuracy up to ±0.01mm.

3. Performance Advantages

• Structural advantages: Three-sided open design, extremely convenient operation, easy integration into automated production lines.

• Precision advantages: Employs dual force and displacement monitoring to ensure press-fit quality and achieve zero-defect production.

• Versatile functions: In addition to press-fitting, it often includes functions such as flattening, straightening, riveting, and punching.

• Safe and reliable: Equipped with two-hand operation buttons, light curtain, anti-cylinder-fall safety devices, etc.

4. Core Application Areas

• Automotive manufacturing: Press-fitting of wheel hub bearings, gearbox bearings, connecting rod bushings, valve seats, etc.

• Motor industry: Press-fitting of end cover bearings, rotor shafts.

• Home Appliances & Hardware: Press-fitting of fan motor bearings, gears, and pins.

• Mechanical Equipment Repair: Disassembly and replacement of bearings and gears.

5. Key Selection Considerations

• Tonnage and Throat Depth: Determine the nominal pressure and throat depth based on the maximum pressure required for press-fitting and the workpiece size.

• Precision and Monitoring: For processes with high quality requirements, be sure to select a model with force-displacement monitoring and curve analysis functions.

• Power Type: Select hydraulic, pneumatic-hydraulic booster, or servo-electric power based on requirements for speed, cleanliness, and control precision.

• Safety and Integration: Confirm the safety protection level and consider compatibility with the automation interface of existing production lines.

C-type/bow-type press-fitting machines are key equipment for standardized and automated assembly. If you have any parts that need press-fitting (e.g., what type of bearing, which workpiece, what the interference fit is), please contact us (or scan the WhatsApp QR code below). Jianlong Hydraulic Technology will provide you with personalized and customized professional solutions and is dedicated to serving you.
