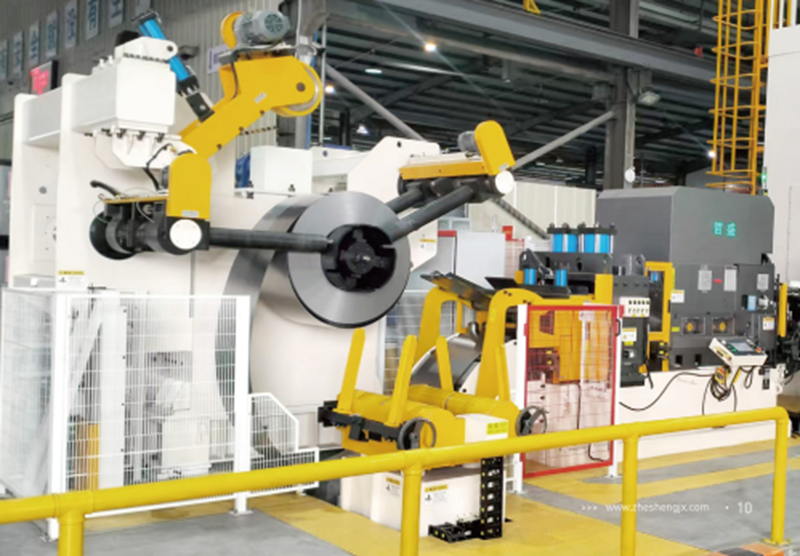

The Core Advantages of the Precision Three-in-One Feeder for Thin Plates

The core advantage of the precision three-in-one feeder for thin plates lies in its "three-in-one" design—integrating the traditionally separate material rack, leveler, and feeder on a stamping line into a single device. This solves the pain points of traditional separate equipment, such as large space occupation, cumbersome debugging, and easy material transfer deviation. A brief analysis is as follows, shared by Jianlong Hydraulic Technology.

1. Material Rack System (Uncoiling)

1.1 Function: Carries and automatically uncoils metal coils.

1.2 Key Configurations: Hydraulic expansion system (tensions the inner diameter of the coil), pressure arm (prevents material loosening), disc brake (controls uncoiling speed).

2. Leveling System (Straightening)

2.1 Function: Eliminates internal stress in the coil, ensuring material flatness.

2.2 Key Configurations: Multiple sets of straightening rollers (e.g., 6 on top and 5 on the bottom, a total of 11 rollers), worm gear precision adjustment.

3. Feeding System (Infeed)

3.1 Function: Precisely feeds materials of a fixed length into the stamping die.

3.2 Key Configurations: High-power servo motor drive, high-friction coefficient feeding rollers, and real-time feedback from a photoelectric encoder.

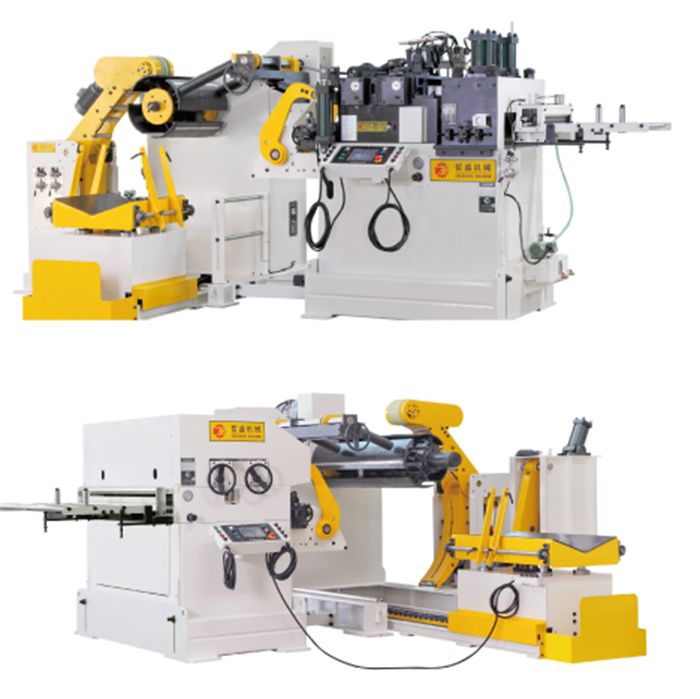

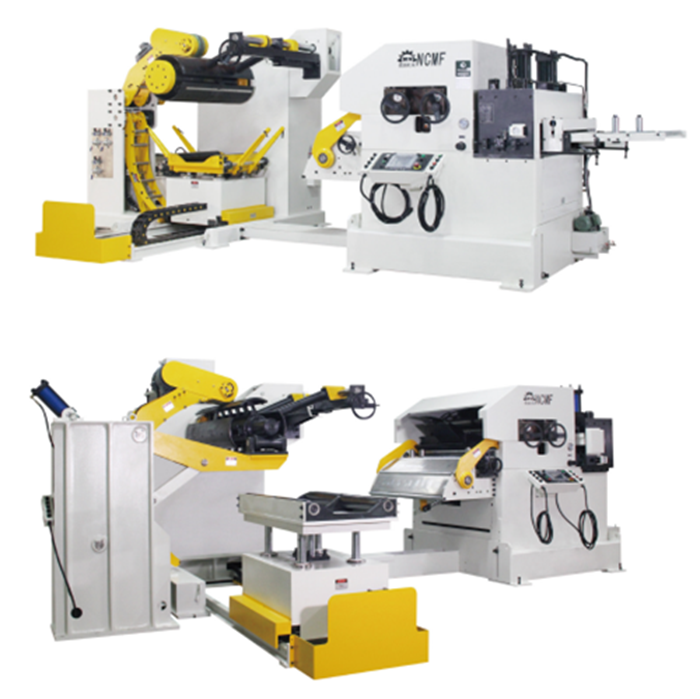

The thin-plate precision three-in-one feeder consists of three modules working collaboratively to automate the process from coiled material to stamping. These three modules work on the same platform, resulting in a compact structure and a footprint approximately 60% smaller than traditional split-type layouts. If you are interested in this equipment or need to purchase a high-quality hydraulic press, please contact us (or scan the WhatsApp QR code below). Currently, Jianlong Hydraulic Technology can customize hydraulic presses from 10 to 5000 tons. Jianlong Hydraulic Technology will provide you with personalized and customized professional solutions and is dedicated to serving you.
