Core Process of Thin Plate Precision Three-in-One Feeder

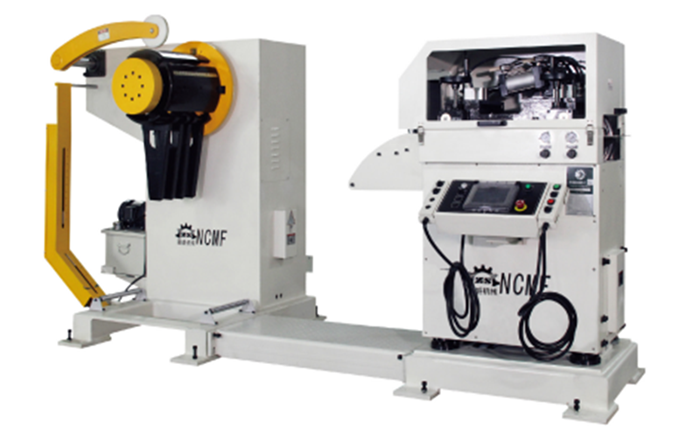

The thin plate precision three-in-one feeder is an automated stamping peripheral equipment that integrates uncoiling, leveling, and feeding functions into one unit. It is specifically designed for metal coils with a thickness between 0.3mm and 3.2mm and is widely used in precision stamping production in the automotive, electronics, home appliance, and hardware industries. This equipment achieves dynamic balance between uncoiling and feeding through material ring control technology. Below, Jianlong Hydraulic Technology will share the core process of this equipment with you, mainly as follows:

1. Stage One: Automatic Feeding

1.1 The hydraulic trolley feeds the coiled material to the main shaft of the material rack.

1.2 The hydraulic expansion system tightens the inner diameter of the coiled material (Φ460-530mm).

1.3 The pressing arm presses down to fix the material head and prevent scattering.

2. Stage Two: Dynamic Material Ring Control

2.1 Three-zone photoelectric detection (high-speed zone/slow-speed zone/stop zone) monitors the material ring height in real time.

2.2 The material rack speed is automatically adjusted through a PID algorithm to keep the material ring stable within the set range.

2.3 This prevents the material from breaking or piling up due to uneven tension.

3. Stage Three: Precision Leveling

3.1 The material enters the multi-roller leveling zone.

3.2 The upper roller group precisely presses down through the worm gear (each rotation corresponds to a 0.05mm reduction).

3.3 This eliminates residual stress in the coiled material and outputs flat material.

4. Stage Four: Servo Synchronous Feeding

4.1  The servo motor receives signals from the punch press cam.

4.2 The feeding action is precisely completed before the stamping stroke.

4.3 The photoelectric encoder provides real-time feedback of position signals, forming a closed-loop control.

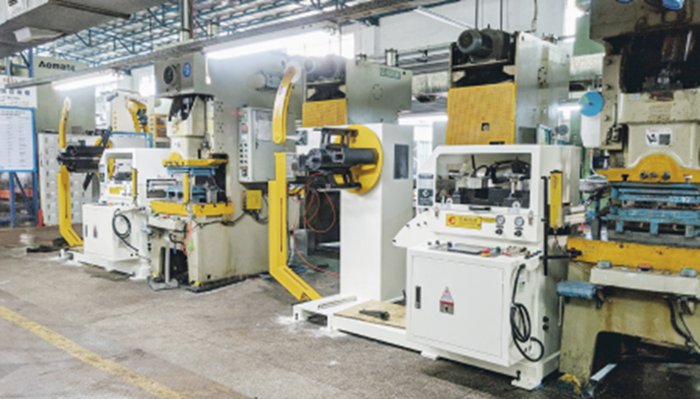

The thin-plate precision three-in-one feeder is a core piece of equipment in modern precision stamping production. It integrates three functions into one, saving approximately 60% of floor space. Through a high-rigidity mechanical structure and servo control technology, it achieves a feeding accuracy of ±0.02mm and a feeding speed of 16m/min. Currently, Jianlong Hydraulic Technology can customize hydraulic presses ranging from 10 to 5000 tons. If you have any questions or suggestions regarding the thin-plate precision three-in-one feeder, or if you need to purchase a high-quality hydraulic press, please contact us (or scan the WhatsApp QR code below). Jianlong Hydraulic Technology will provide you with personalized and customized professional solutions and is dedicated to serving you.
