Applications of the 40-ton C-type Hydraulic Press in the Motor and Bearing Industries

The application of the 40-ton C-type hydraulic press in the motor and bearing industries primarily focuses on the core process of precision press-fitting. Whether it's assembling the rotor and stator of a motor or pressing in the interference fit of various bearings, this equipment, with its 40-ton pressure and C-type open body, provides a stable and efficient solution. Below, Jianlong Hydraulic Technology shares a detailed explanation of its core applications in two major areas.

1. Applications in Motor Manufacturing

On motor production lines, the 40-ton C-type hydraulic press is a key assembly piece, mainly used to ensure the precise fit of core components.

1.1 Rotor and Stator Press-fitting: Presses the motor rotor or stator into the motor shaft or into a designated position within the housing. Stable pressure and precise stroke control ensure assembly accuracy and avoid damage to silicon steel sheets or coils.

1.2 Bearing Press-fitting: Presses miniature bearings or ball bearings into the motor's main shaft and end caps. The press-fitting process is smooth and controllable, effectively ensuring the coaxiality of the bearing and the housing bore, and preventing bearing damage due to uneven force.

1.3 Motor Housing Assembly: Suitable for washing machine, air conditioner, and automotive motors, used to rivet or press-fit the end caps or outer shells of motor housings, ensuring the sealing and structural strength of the housing.

2. Applications in the Bearing Field

Bearing assembly is one of the most mature applications of C-type hydraulic presses. Its advantage lies in using "pressing" instead of "knocking," ensuring assembly quality.

2.1 Bearing Press-fitting and Removal

• Press-fitting: Smoothly pressing new bearings, bushings, and other interference-fit parts into the bearing housings of gears, hubs, or mechanical parts. Compared to knocking, this better protects the bearing raceways.

• Removal: Safely pressing worn or damaged old bearings out of the shaft or bore for easy replacement and maintenance.

2.2 Precision Assembly of Motor Bearings: Specifically used for the precision press-fitting of bearings in various motors (such as automotive motors and air conditioner motors), requiring high repeatability and positioning accuracy.

2.3 Bushing and Gear Press Fitting: Used for pressing bushings into housings, or for interference fits between small gears, sprockets, and shafts, especially suitable for scenarios requiring mass production and consistent assembly.

3. Why 40 Tons? Application Advantages Analysis

The 40-ton C-type hydraulic press is ideal for these two fields primarily due to the following reasons:

3.1 Precise and Controllable Pressure: The 40-ton capacity perfectly covers the conventional pressure requirements for pressing small and medium-sized motor components and bearings. Modern models are generally equipped with PLC touchscreen control systems and displacement sensors, allowing for precise setting of pressing force, position, and speed, and featuring pressure curve monitoring to effectively identify assembly defects such as "excessive pressing force" or "incomplete pressing."

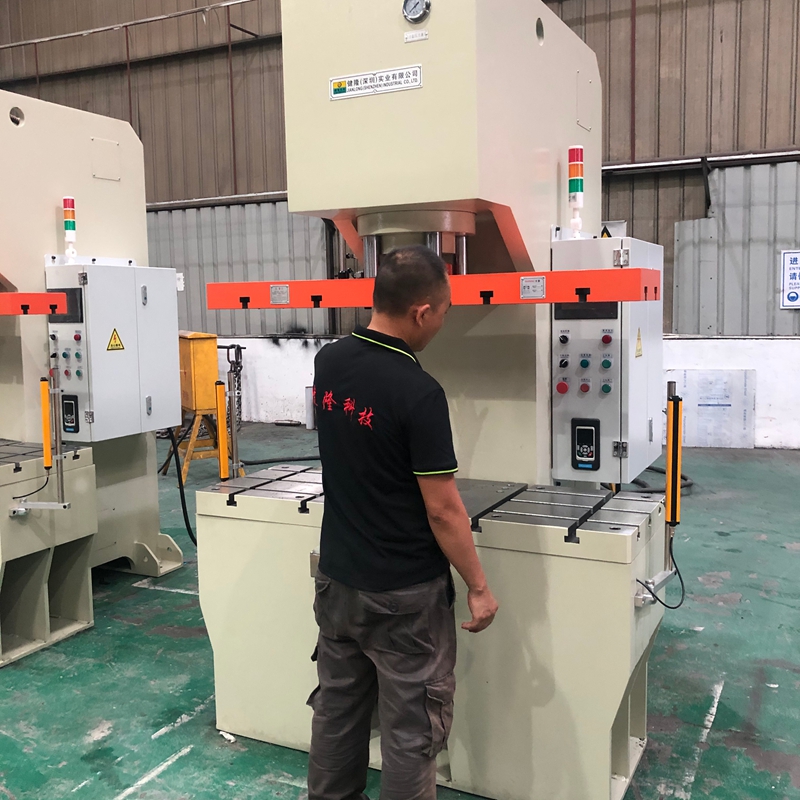

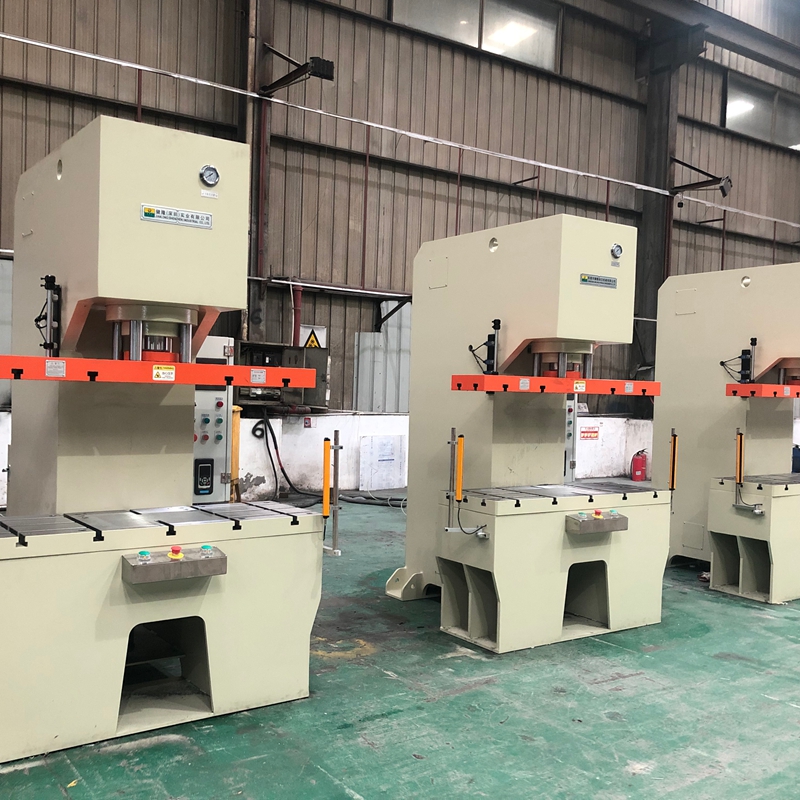

3.2 C-Type Body, Convenient Operation: The C-type body is open on three sides, making it very convenient for workers to load and unload materials from the front or side. Whether it's a long motor shaft or an irregularly shaped bearing housing, it can be easily placed into the work area, providing excellent visibility for operators.

3.3 Multi-functional, Flexible Production: A single machine can not only press bearings and assemble rotors, but also complete multiple processes such as straightening shaft parts, riveting metal parts, and bending. This offers high flexibility for companies whose production lines frequently switch products.

3.4 Easy Integration with Automation: For large production volumes, this type of equipment is easily integrated with automated production lines. By adding automatic feeding mechanisms or robotic arms, fully automated pressing can be achieved, improving production efficiency.

In summary, the core value of the 40-ton C-type hydraulic press in the motor and bearing fields lies in its use of precise and controllable static pressure to assemble interference-fit parts. It replaces the traditional and uncontrollable hammering method, ensuring high assembly accuracy and stability while protecting expensive workpieces from damage. Whether it's batch pressing on a motor production line or bearing replacement in an equipment repair shop, this equipment plays an indispensable role as a "precision assembler." Currently, Jianlong Hydraulic Technology can customize hydraulic presses ranging from 10 to 5000 tons (with supporting products such as chillers and air compressors). All hydraulic presses are CE certified and fully comply with the EU Machinery Directive (2006/42/EC). Our products are sold to Europe and America, including Germany, the United States, Mexico, and Portugal. If you have any purchasing needs, please contact us (or scan the WhatsApp QR code below). Jianlong Hydraulic Technology will provide you with personalized and customized professional solutions and is dedicated to serving you.
