The Role of Hydraulic Forging Presses in Bicycle Manufacturing

Hydraulic forging presses play a vital role in bicycle manufacturing, especially in the mid- to high-end bicycle segment. Their core function is to produce high-strength, lightweight, and high-performance key components, directly enhancing the riding experience, safety, and lifespan of bicycles. Below, the editors of Jianlong Hydraulic Technology share their specific roles and application components in bicycle manufacturing for your reference when purchasing!

1. Achieving Ultimate Lightweight and High Strength

This is the core advantage of the forging process. Through the intense pressure of the hydraulic press, the grain structure of the metal material (primarily aluminum alloy, but also magnesium alloy, titanium alloy, and steel) is compacted and fiberized, aligning its flow direction with the part's shape. This significantly improves the part's strength and rigidity without increasing or even reducing weight. Typical components are as follows:

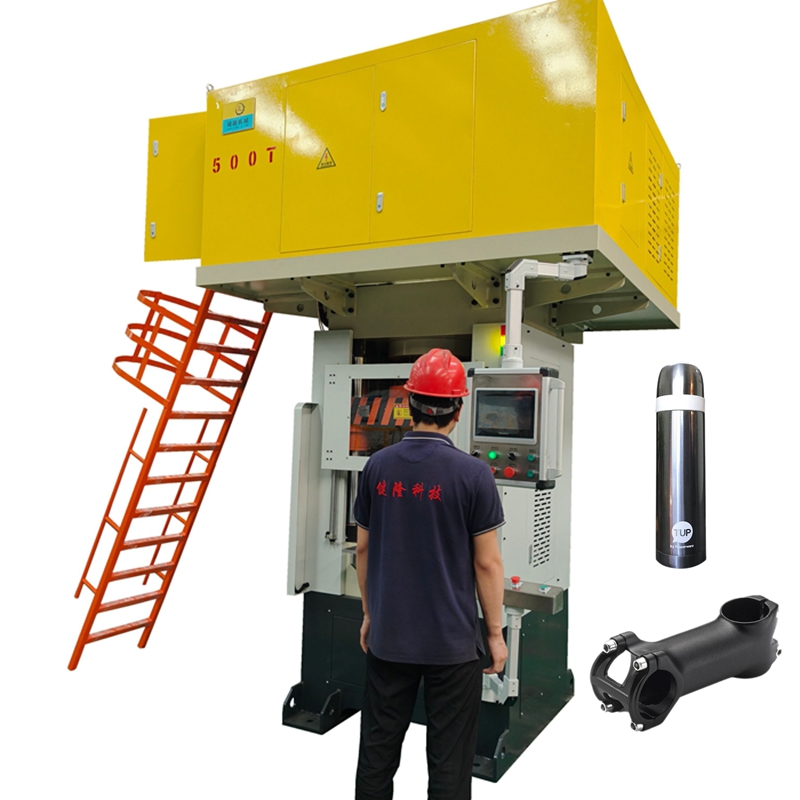

1.1 Handlebars and Stems: High-end handlebars and stems are commonly forged. They must withstand the complex stresses of the rider's weight and handling. Forged parts offer exceptional rigidity and reliability while maintaining extreme lightness, preventing breakage or excessive deformation during intense riding.

1.2 Cranks and Chainrings: These are the heart of the drivetrain, enduring the immense torque and impact of pedaling. Forged cranks are lighter and stiffer than their cast or stamped counterparts, effectively improving power transmission efficiency and providing a more "rigid" pedaling feel, rather than a soft feel.

1.3 Hub Shells: High-performance hubs, in particular, are often forged to ensure they retain deformation under the high tension of the spokes, reducing unsprung mass and enhancing riding responsiveness.

1.4 Brake Calipers: Forged parts, particularly for C/V brake calipers on road bikes, offer increased rigidity, resulting in a more direct braking feel and efficient power transfer.

2. Manufacturing Complex Hollow and Special-Shaped Structures

Modern hydraulic presses, combined with precision molds, enable complex near-net-shape forgings. This means that parts with highly complex shapes, internal ribs, or nearly hollow structures can be forged in a single process, providing designers with tremendous freedom. Typical components include the following:

2.1 Hollow Cranks: Through forging and subsequent machining, cranks with a hollow interior can be created, achieving maximum weight reduction while maintaining strength and rigidity. This is a common manufacturing method for top-tier bicycle cranks.

2.2 Integrated Bottom Bracket Shells: Modern bicycle frames often have a bottom bracket shell pressed or welded into the bottom bracket area (where the cranks are mounted). The forged bottom bracket shell is highly precise and strong, ensuring smooth crank operation and exceptional frame rigidity.

3. Improving Part Fatigue Life and Reliability

Bicycle parts are subjected to long-term, high-frequency alternating loads (e.g., every pedal stroke, every bump). The forging process eliminates internal material defects (such as pores and shrinkage) and refines the grain size, significantly improving the fatigue resistance of the parts. Typical components are as follows:

3.1 Suspension fork/shock components: Critical components such as linkages and mounts in suspension systems are often forged because they withstand repeated impact loads and require extremely high fatigue life.

3.2 Thru-axles: Used to secure the front and rear wheels, forged thru-axles offer increased strength, ensuring they will not break even under extreme conditions, thus ensuring safety.

4. Ensuring product consistency and high quality

The hydraulic forging process is stable and controllable, ensuring that every part produced in batches has highly consistent mechanical properties and dimensional accuracy. This is crucial for bicycle brands focused on performance and safety.

In short, hydraulic forging presses are not used to produce the main frame triangle in bicycle manufacturing (that is the domain of hydroforming machines), but rather to create the "joints" and "core" components that are critical to performance, weight, and safety. They contribute to the superior rigidity, lightness, and safety of high-end bicycles, and are a hallmark of high-quality bicycle manufacturing. For more inquiries/suggestions on forging hydraulic presses or to purchase other high-quality hydraulic presses, please contact us (or scan the WhatsApp QR code below). Jianlong Hydraulic Technology will provide you with personalized, customized professional solutions and serve you wholeheartedly.
