How to Choose the Right Safety Warning Lights for Your Hydraulic Press?

Choosing safety warning lights for a hydraulic press shouldn't be based solely on product specifications. Instead, it should revolve around a core objective: to clearly convey the equipment's status through a combination of light and sound, forming a "warning-confirmation-action" safety loop to prevent misoperation. This differs from active protection devices like safety light curtains—light curtains directly block danger, while warning lights inform and warn of the status. Only through their combined use can a complete protection system be established.

1. Clarify the Correspondence Between Status and Color

First, define the equipment status represented by different colors based on the actual operating conditions of the hydraulic press. This definition should align with the operator's intuition and ensure consistency throughout the plant. Reference Standard Industrial Signal Definitions:

1.1 Red

• Typical Meaning: Emergency/Fault/Stop

• Application Scenarios: Emergency stop button pressed, safety light curtain triggered, hydraulic system overpressure, motor overload, equipment malfunction shutdown

1.2 Yellow/Orange

• Typical Meaning: Warning/Preparation/Early Warning

• Application Scenarios: Equipment powered on but not running, in debugging/manual mode, countdown warning before start-up, high oil temperature alarm

1.3 Green

• Typical Meaning: Normal Operation

• Application Scenarios: All safety conditions met, main motor running, slider at top dead center, safe to start cycle

1.4 Blue/White

• Typical Meaning: Other/Pending Intervention

• Application Scenarios: Operator needs to change mold, waste material needs to be cleaned, equipment in automatic operation mode but waiting for material supply

Special Note: The "early warning" function of the yellow light is crucial. Before the slider moves (e.g., after pressing the two-hand buttons), the yellow light should flash for 3-5 seconds accompanied by a buzzer. The slider should only begin to move after the warning ends. This provides ample time for those nearby to avoid the source of the fire.

2. Core Selection Parameters Selection should not be based solely on color; the following technical parameters are equally important:

2.1 Light Source Type

• Prefer LEDs: LEDs have a long lifespan (30,000-100,000 hours), low power consumption (generally <5-8W), fast response, and vibration resistance, making them ideal for industrial environments.

• Avoid traditional bulbs, as they have short lifespans and are easily damaged.

2.2 Protection Rating (IP) Hydraulic press environments typically involve oil, dust, and potential splashes.

• Minimum requirement: IP65, effectively protecting against dust and water spray.

• Harsh environments: For outdoor applications or situations requiring high-pressure washing, IP67 or even IP69K can be selected.

2.3 Audible Alarm Audible alarms provide wider coverage for warning messages.

• Volume: It is recommended to choose a product with a maximum volume between 85-110dB to ensure clear audibility in noisy workshop environments.

• Tone: Ideally, multiple tones should be available (e.g., different ticking sounds, buzzing sounds) to distinguish different alarm levels.

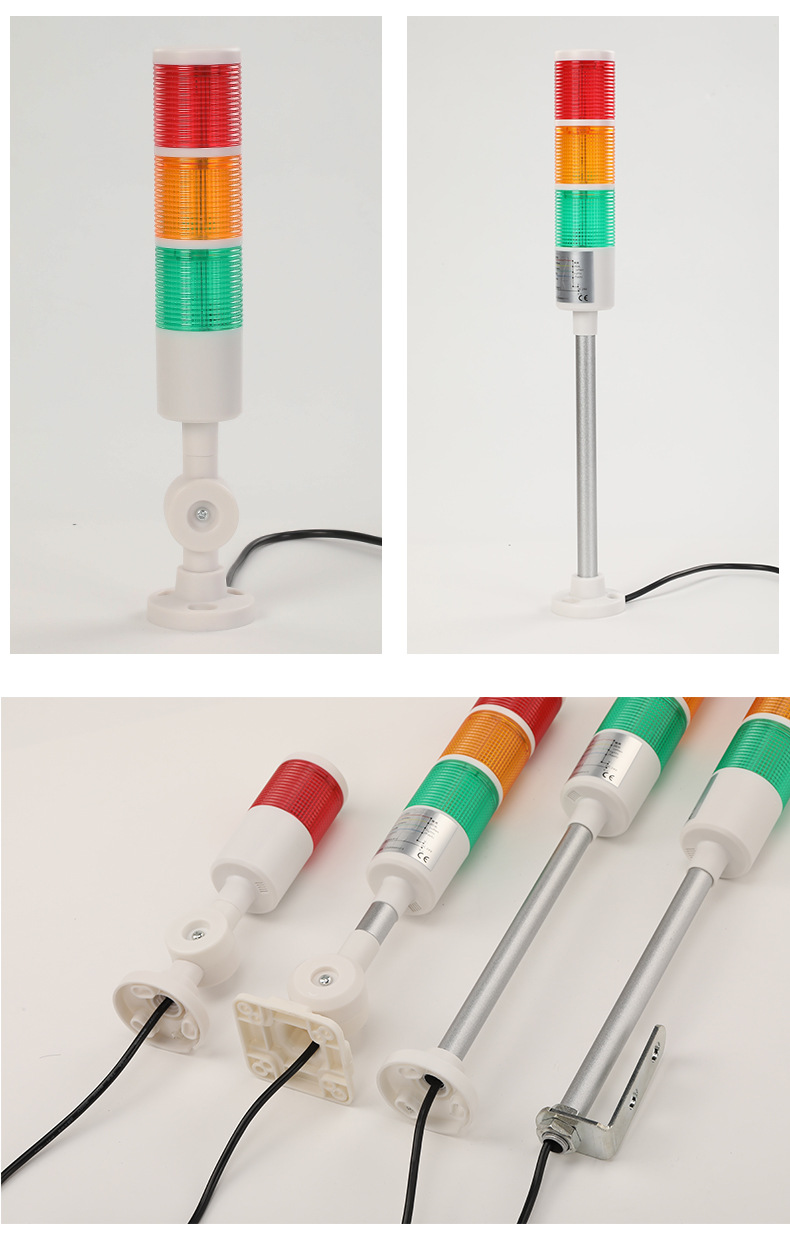

2.4 Installation and Control

• Installation Methods: Common methods include screw fixing (most secure) and magnetic base (easy to install and remove, suitable for rental or temporary equipment).

• Control Method: The warning light must be connected to the hydraulic press's PLC control system. The PLC output points should automatically illuminate the corresponding color and sound based on the equipment status. Ensure voltage matching (commonly DC24V) is confirmed during selection.

3. Quick Selection Checklist

Refer to the following checklist to ensure no items are omitted:

3.1 Color Definition: The corresponding equipment status for red, yellow, green, and blue/white should be clearly defined and consistent with operating procedures.

3.2 Light Source: Select high-brightness LEDs.

3.3 Protection Rating: Confirm IP65 or higher.

3.4 Sound Function: For audible alarms, confirm that the volume (≥85dB) and tone are adjustable.

3.5 Voltage Matching: Confirm that the voltage is consistent with the PLC output or control power supply (usually DC 24V).

3.6 Installation Method: Select a suitable mounting base (screws, magnetic, etc.) based on the equipment structure.

3.7 Control Logic: The output points corresponding to each state have been planned in the PLC program, and a yellow light flashing warning function before startup has been designed.

4. Frequently Asked Questions

Q: If a safety light curtain is already in place, is a warning light still needed?

A: Yes. They complement each other. The light curtain provides active protection, stopping the machine if someone enters; the warning light provides status notification, letting everyone know the current state of the equipment (e.g., green light indicates entry is allowed, yellow light indicates imminent activation), thus proactively avoiding risks.

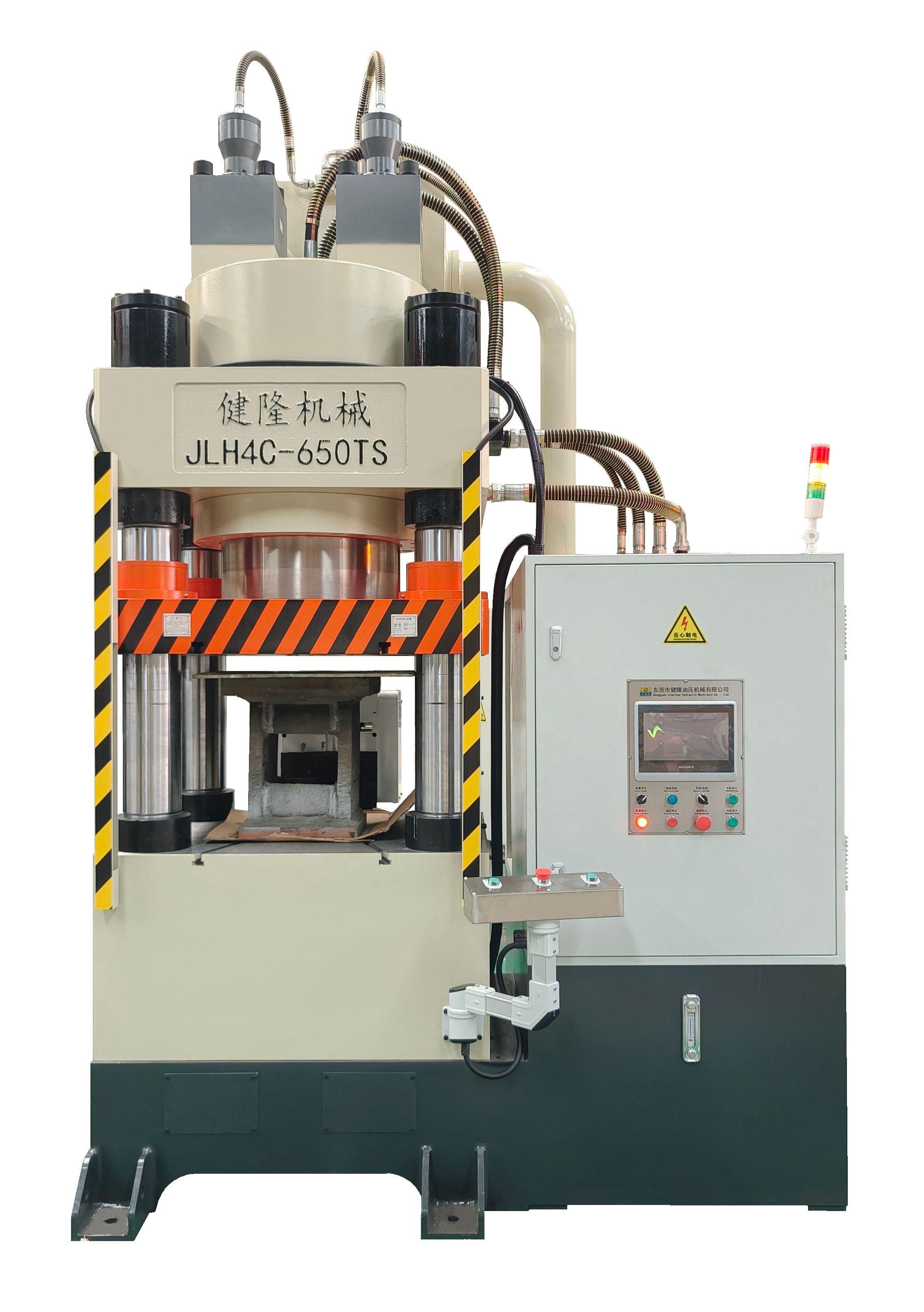

Q: Where is the most effective location to install the warning light?

A: At least two locations are needed: 1) Near the control panel, so the operator can clearly see it; 2) High above or around the equipment, so surrounding personnel can also see it. Ensure 360° visibility with no blind spots.

Q: Can the warning light be directly connected to a power source?

A: It can light up when powered on, but PLC control is strongly recommended. This allows for linkage with equipment status (e.g., automatic red light for faults, green light for operation) and advanced functions such as pre-start warnings.

If you can tell me the hydraulic press's control voltage (DC24V or AC220V) and whether an audible alarm is required, I can help you narrow down the product type. For more information/advice on hydraulic press safety warning lights or to purchase high-quality hydraulic presses, please contact us (or scan the WhatsApp QR code below). Jianlong Hydraulic Technology will provide you with personalized, customized professional solutions and is dedicated to serving you.
