Key Applications of Servo Precision Presses in the 3C Electronics Sector

The application of servo precision presses in the 3C electronics sector primarily focuses on two categories: the stamping and forming of miniature precision parts and high-precision press-fitting. Their core value lies in meeting the manufacturing demands for electronic products characterized by being "small, precise, and fast"—involving tiny part dimensions, strict tolerance control (often measured in microns), rapid product iteration, and flexible batch sizes. The following insights are provided by the team at Jianlong Hydraulic Technology; please feel free to contact us for more information!

1. Typical Application Scenarios

1.1 Connectors and Terminals

This is one of the most typical applications for servo presses in the 3C sector. Core components such as mobile phone SIM card connectors, USB ports, and socket terminals require extremely high stamping precision. Through closed-loop control, servo presses can maintain product tolerances at the ±0.001 mm level, ensuring dimensional consistency. Their low-vibration and low-noise operation also helps improve the surface quality of terminal products.

1.2 Shielding Covers and Precision Structural Parts

Thin-walled precision parts, such as mobile phone shielding covers, typically require dimensional tolerances within ±0.01 mm and are sensitive to material springback. The variable speed control function of servo presses allows for reduced speed at the moment of stamping to minimize springback; combined with a high-rigidity machine frame and precision drive system, this ensures dimensional stability in the stamped parts.

1.3 Semiconductor and PCB-Related Parts

Extreme precision is crucial when processing components such as semiconductor lead frames and flexible printed circuit boards (FPCBs). Case studies show that by utilizing specialized molds alongside hybrid motion profiles—combining specific vibration patterns with multi-stage coining—PCB manufacturing can shift from cutting methods to stamping methods, resulting in significant savings in production time and costs.

1.4 Precision Press-Fitting and Assembly

Beyond stamping and forming, servo presses are widely used in the precision press-fitting stages of 3C electronics manufacturing. Examples include the press-fitting of core imaging components and motor bearings, as well as precision force testing, such as spring performance verification. These applications demand precise control over force and displacement—requirements perfectly met by the digital control capabilities of servo systems.

2. Key Reasons for Choosing Servo Presses

3C electronic products are characterized by rapid innovation cycles, diverse varieties, and flexible batch sizes; traditional mechanical presses involve cumbersome setup processes, making them ill-suited for frequent production changes. Servo presses feature digital control systems capable of storing various process parameters, allowing for rapid production switching by simply recalling the appropriate program after a mold change. Their servo motors offer stepless speed control, enabling flexible adjustments to stamping speed and stroke length based on specific materials and processes. Furthermore, servo-driven systems offer energy savings of 30%–60% compared to traditional presses, aligning with the energy efficiency requirements of the 3C manufacturing industry.

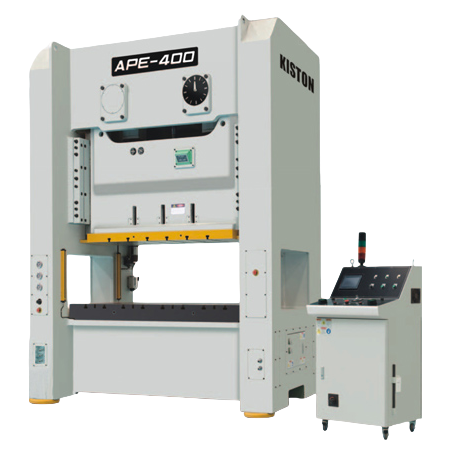

Precision servo presses are particularly well-suited for the production of 3C electronic components that are thin, small-sized, and require high precision, multi-stage processing, and high-volume output. By integrating precision molds, automatic feeding systems, visual inspection, and robotics, manufacturers can establish intelligent, precision stamping production lines. Please contact us for more information on precision servo presses. Currently, Jianlong Hydraulic Technology offers custom-built hydraulic presses ranging from 10 to 5,000 tons (with optional accessories such as chillers and air compressors). All presses are CE certified and fully compliant with the EU Machinery Directive (2006/42/EC). Our products are exported to markets across Europe and the Americas, including Germany, the USA, Mexico, and Portugal. If you have procurement needs, please contact us (or scan the WhatsApp QR code below); Jianlong Hydraulic Technology is dedicated to providing you with personalized, customized professional solutions.
