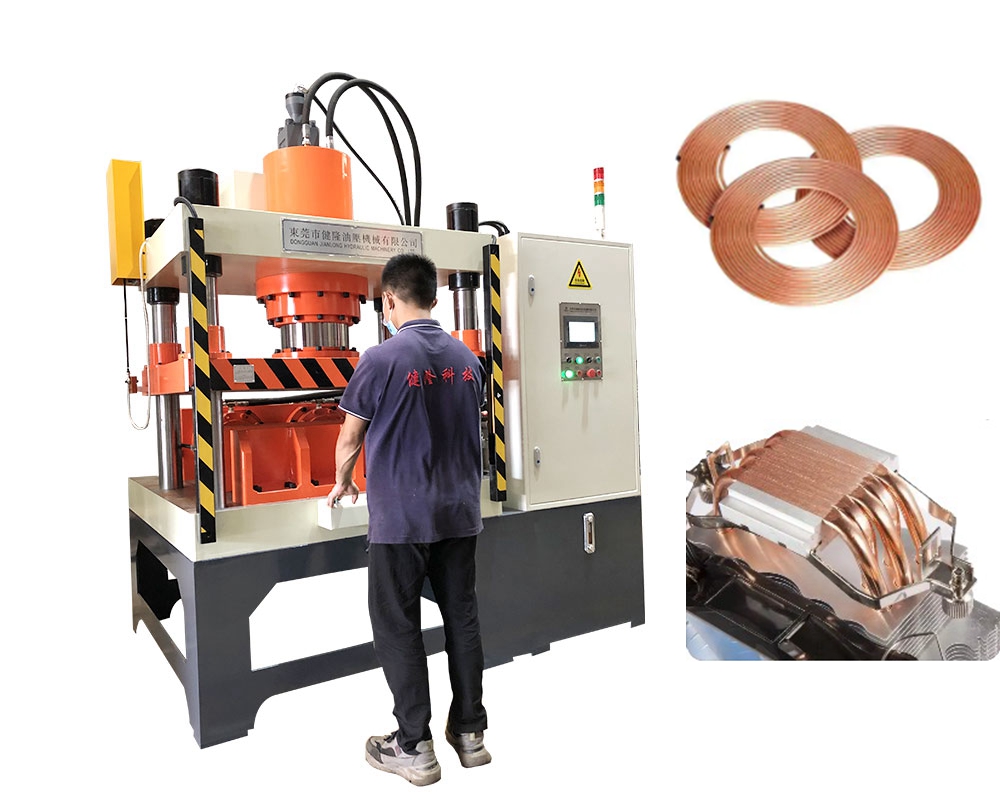

Introduction to Servo Radiator Shaping Hydraulic Press

Servo Radiator Shaping Hydraulic Press is an efficient and precise hydraulic forming equipment, mainly used for stamping, shaping, pressing and other processes of metal heat dissipation parts such as electronic radiators, LED heat sinks, and automobile water tanks. It combines the advantages of servo drive technology and hydraulic systems, has the characteristics of high precision, energy saving, low noise, etc., and is widely used in the radiator manufacturing industry.

1. Equipment structure and composition

1.1 Servo motor drive system: adopts high-precision servo motor to control the hydraulic pump to achieve precise adjustment of flow and pressure, which saves 30%~50% energy compared with traditional hydraulic presses.

1.2 Hydraulic system: equipped with high-performance hydraulic pump, proportional valve or servo valve to ensure stable pressure and improve molding accuracy.

1.3 PLC control system: adopts programmable logic controller (PLC) and touch screen human-machine interface (HMI), supports multi-stage pressure and speed adjustment, and realizes automated production.

1.4 Body structure: adopts four-column or frame structure, with strong rigidity and good anti-eccentric load capacity to ensure long-term stable operation.

1.5 Mold and workbench: Molds can be customized according to different radiator specifications. The workbench usually has T-slots to facilitate mold installation and adjustment.

2. Main technical features

2.1 High-precision molding: Servo control can achieve ±0.02mm repeatable positioning accuracy, ensuring consistent shape of heat sinks and improving product quality.

2.2 Energy saving and high efficiency: Traditional hydraulic presses still consume energy when maintaining pressure, while servo hydraulic presses only supply oil when needed, greatly reducing energy consumption.

2.3 Low-noise operation: The servo motor drive reduces the impact of the hydraulic system, and the noise can be controlled below 75dB.

2.4 Intelligent control: Supports closed-loop control of multiple parameters of pressure, displacement, and speed, and has fault self-diagnosis function to reduce downtime.

2.5 Multi-functional applicability: It can be used for stamping, press-fitting, riveting, bending and other processes to meet the production needs of different radiators.

3. Typical application areas

3.1 Electronic radiator: used for precision molding of heat sinks such as CPU, GPU, and power module.

3.2 LED heat sink: pressing and shaping of aluminum substrate and fin heat sink.

3.3 Automobile cooling system: stamping of water tank, condenser, intercooler and other parts.

3.4 Industrial heat exchange equipment {such as the manufacture of inverter and inverter heat sink.

If you need high-quality hydraulic press manufacturing, please feel free to tell us (scan the QR code below), we will provide you with personalized and customized professional solutions and serve you wholeheartedly.
