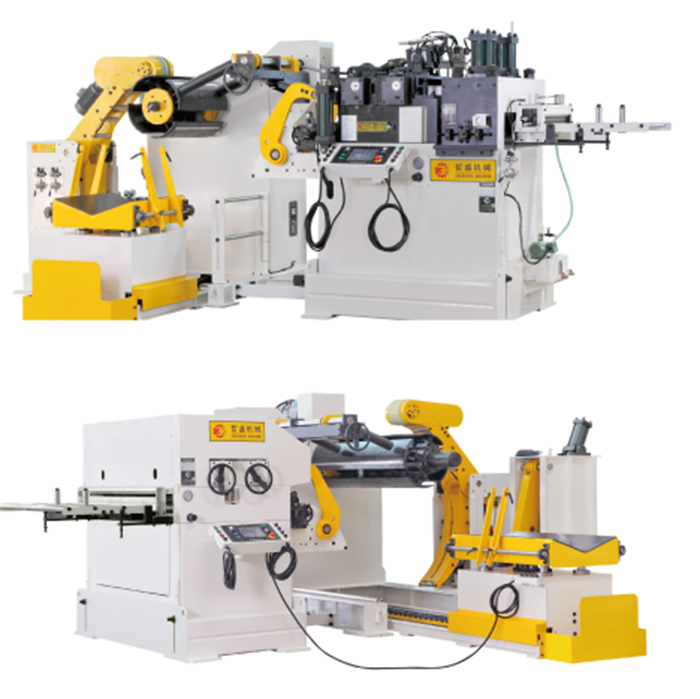

Technical Advantages and Key Selection Points of Precision Three-in-One Feeder for Plates

The core technological advantage of the precision three-in-one feeder for thin plates lies in its integration of space efficiency, production precision, process quality, and intelligent operation and maintenance, solving the pain points of traditional stamping lines such as large footprint, low precision, and slow setup. Its core advantages can be summarized in the following four dimensions, as shared by Jianlong Hydraulic Technology:

1. Integrated Design: A Revolution in Space and Efficiency

1.1 Saves over 60% of Footprint: Integrating the independent material rack, leveler, and feeder into one compact unit not only frees up safe operating space for operators but also makes multi-production line layouts possible.

1.2 Shortens Production Preparation Cycle: The integrated design significantly reduces equipment connection and debugging time. Die changeover time is reduced from 30-60 minutes in the traditional mode to 5-10 minutes, making it ideal for flexible production needs of multiple varieties and small batches.

2. Precision Control: Micron-Level Feeding Accuracy

2.1 Ultimate Feeding Precision: Utilizing high-end servo motors and precision control systems (such as Yaskawa and Mitsubishi), feeding accuracy is controlled to ±0.02mm or even higher, with repeatability reaching ±0.005mm.

2.2 Anti-Slip and Synchronous Operation:

• Powerful Clamping: High-hardness feeding rollers (hard chrome plated, HRC60 hardness) driven by high-power servo motors provide strong clamping force, eliminating slippage at its source.

• Adjustable Head: The head height is electrically adjustable to adapt to different mold heights, ensuring a consistent feeding centerline and guaranteeing accuracy.

• Integrated Leveling and Feeding: Leveling and feeding are integrated on the same rigid platform, eliminating intermediate transmission errors and ensuring completely synchronized operation.

3. High Performance and Stability: Ensuring Long-Term Production

3.1 High Wear Resistance of Core Components: Key rollers are made of GCr15 bearing steel, high-frequency quenched and hard chrome plated, achieving a hardness of HRC60°-62°, providing excellent wear resistance and maintaining precision over a long period.

3.2 Excellent Leveling Effect: 11-13 high-precision leveling rollers are arranged in a staggered pattern, combined with worm gear precision adjustment, effectively eliminating internal stress in the coil and ensuring flatness.

3.3 Smooth Operation: Equipped with a hydraulic expansion system, a powered pressing arm, and disc brakes, ensuring smooth and stable operation of the coil at high speeds.

4. Intelligent and Easy-to-Use: A Leap in Operation and Maintenance

4.1 One-Click Die Change and Storage: The intelligent control system supports one-click storage and retrieval of up to 20 sets of product process parameters. Die change only requires recalling the program, completely eliminating repetitive and tedious settings.

4.2 Self-Diagnosis of Faults: The system has comprehensive fault alarm and diagnostic functions, directly displaying problem points on the touchscreen, greatly shortening troubleshooting time. 4.3 Convenient Maintenance:

• Openable Head: The leveling unit can be opened 30 degrees for easy cleaning of internal waste materials, especially suitable for products with high surface quality requirements (such as mirror stainless steel).

• Automatic Lubrication: An integrated automatic lubrication system ensures long-term stable operation of key components and reduces maintenance costs.

5. Key Selection Points

5.1 Material Matching: Determine the material (stainless steel/aluminum/copper), width and thickness range (thin plates are typically 0.3mm-3.2mm), and coil weight.

5.2 Core Configuration: Select the servo system brand (such as Mitsubishi, Yaskawa) based on accuracy requirements, and confirm whether optional functions such as a loading trolley, hydraulic shears, and oiling device are needed.

If you can provide the specific material type, width range, and thickness, I can recommend a more suitable model. Currently, Jianlong Hydraulic Technology can customize hydraulic presses from 10 to 5000 tons. If you have any questions or suggestions regarding the thin plate precision three-in-one feeder, or if you need to purchase a high-quality hydraulic press, please contact us (or scan the WhatsApp QR code below). Jianlong Hydraulic Technology will provide you with personalized and customized professional solutions and is dedicated to serving you.
