Pneumatic Punch Press

A pneumatic punch press is a stamping machine powered by compressed air. Its core characteristics—simple structure, safe operation, and environmental friendliness—make it ideal for the precision processing of small components in industries such as electronics and home appliances. These presses generally come in two types; the team at Jianlong Hydraulic Technology shares the following details to assist with your purchasing decisions:

1. Classification by Structural Type

1.1 Small Precision Pneumatic Punch Press

Typically featuring a single-column or C-frame structure, these compact units often utilize a pneumatic cylinder directly as the working component. They generally offer an output force ranging from 100 kgf to 2200 kgf (approx. 1–22 kN), with pressure easily adjustable via a pressure-regulating valve. They are commonly used for light-duty precision tasks such as press-fitting electronic components, cutting plastic parts, and hot stamping trademarks. The worktable can even be designed to move along guide rails, facilitating easier loading and unloading for smoother operation.

1.2 Large Industrial Pneumatic Punch Press

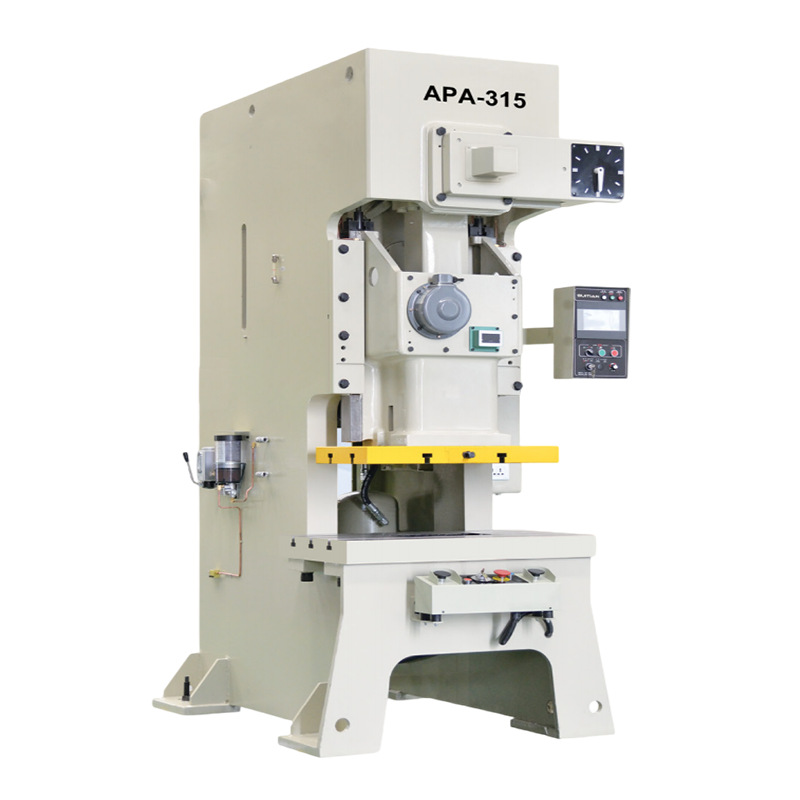

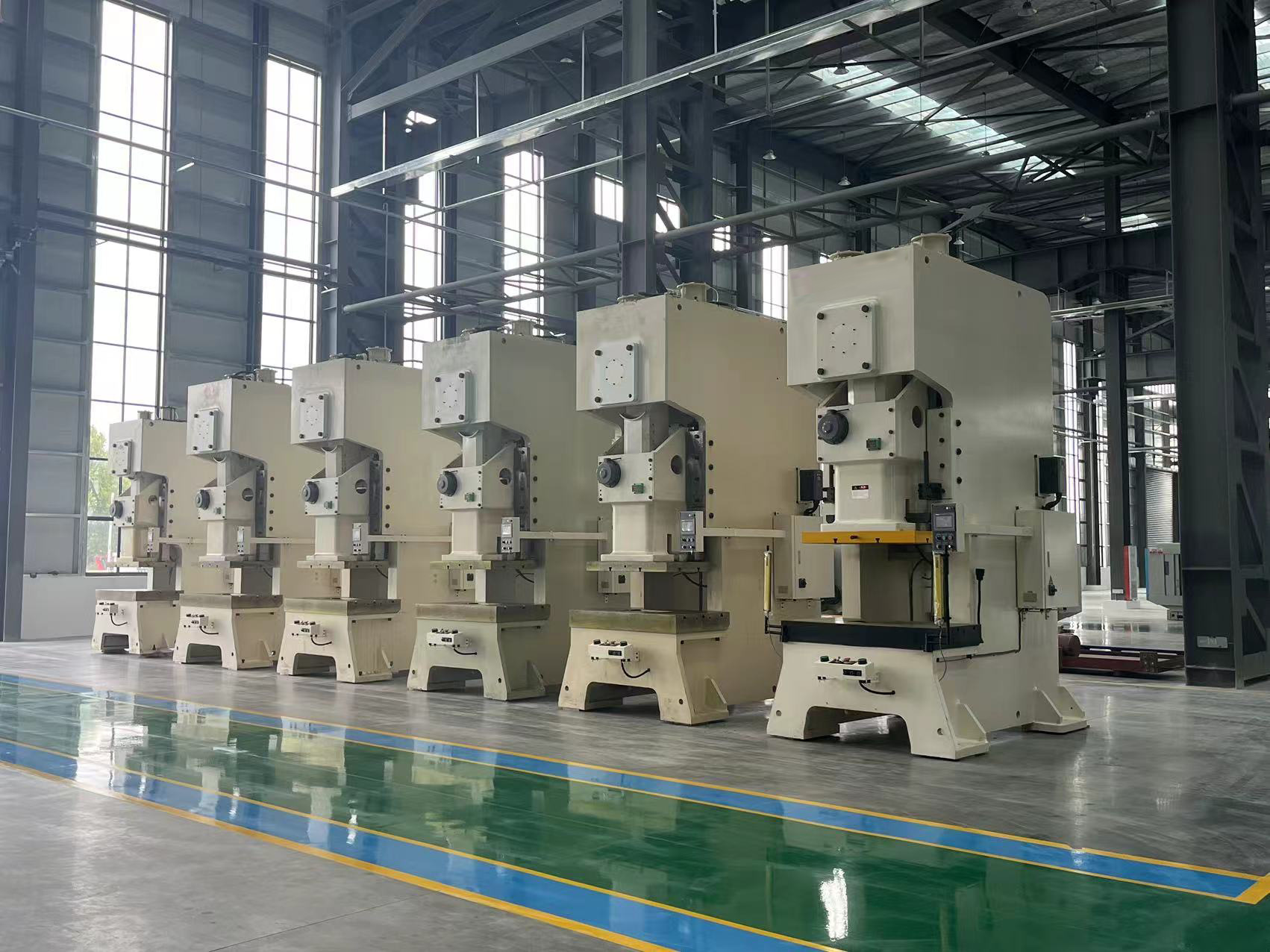

These machines typically feature an open or closed frame constructed from welded steel plates, ensuring excellent rigidity and stability. Their operating principle resembles that of a "pneumatically controlled mechanical punch press": a motor drives a flywheel to store energy, while compressed air controls the engagement and disengagement of the clutch (such as the pneumatic friction clutch used in the JF21 series), thereby driving the crankshaft and slide for the stamping operation. These high-tonnage machines—with nominal forces reaching 1600 kN, 2000 kN, or even 3150 kN (approx. 160–315 tons)—are suitable for heavy-duty processes like punching, blanking, and deep drawing on medium-to-thick sheet metal, such as automotive body panels and home appliance casings.

2. Core Advantages and Application Scenarios

Compared to traditional mechanical punch presses, their main advantages include:

2.1 Energy Efficiency and Cleanliness: Powered by compressed air, they eliminate oil contamination and avoid the energy waste associated with motors idling.

2.2 Safety and Precision: They are generally equipped with dual-hand start buttons, photoelectric safety guards, and overload protection systems. Large-scale models utilize PLC control, allowing for precise adjustment of parameters such as slide stroke and speed. 2.3 Wide Range of Applications: Lightweight models serve the electronics, toy, and watchmaking industries, while heavy-duty models cater to the automotive, hardware, and home appliance sectors—covering stamping needs ranging from precision components to structural parts.

If you have specific processing requirements (such as material thickness or precision specifications), please let us know, and we will provide you with a professional solution. Please contact us for further information regarding our pneumatic punch presses. Our machines are CE certified and fully compliant with the EU Machinery Directive (2006/42/EC); our products are exported to markets across Europe and the Americas, including Germany, the USA, Mexico, and Portugal. For inquiries or purchasing needs, please scan the WhatsApp QR code below; Jianlong Hydraulic Technology is dedicated to providing you with personalized, customized professional solutions and exceptional service.
